How do I use navigation beacons?

Navigation beacons let you label specific areas of your plan, assign color codes, and jump directly to any spot with a click. Especially useful on large or multi-room plans.

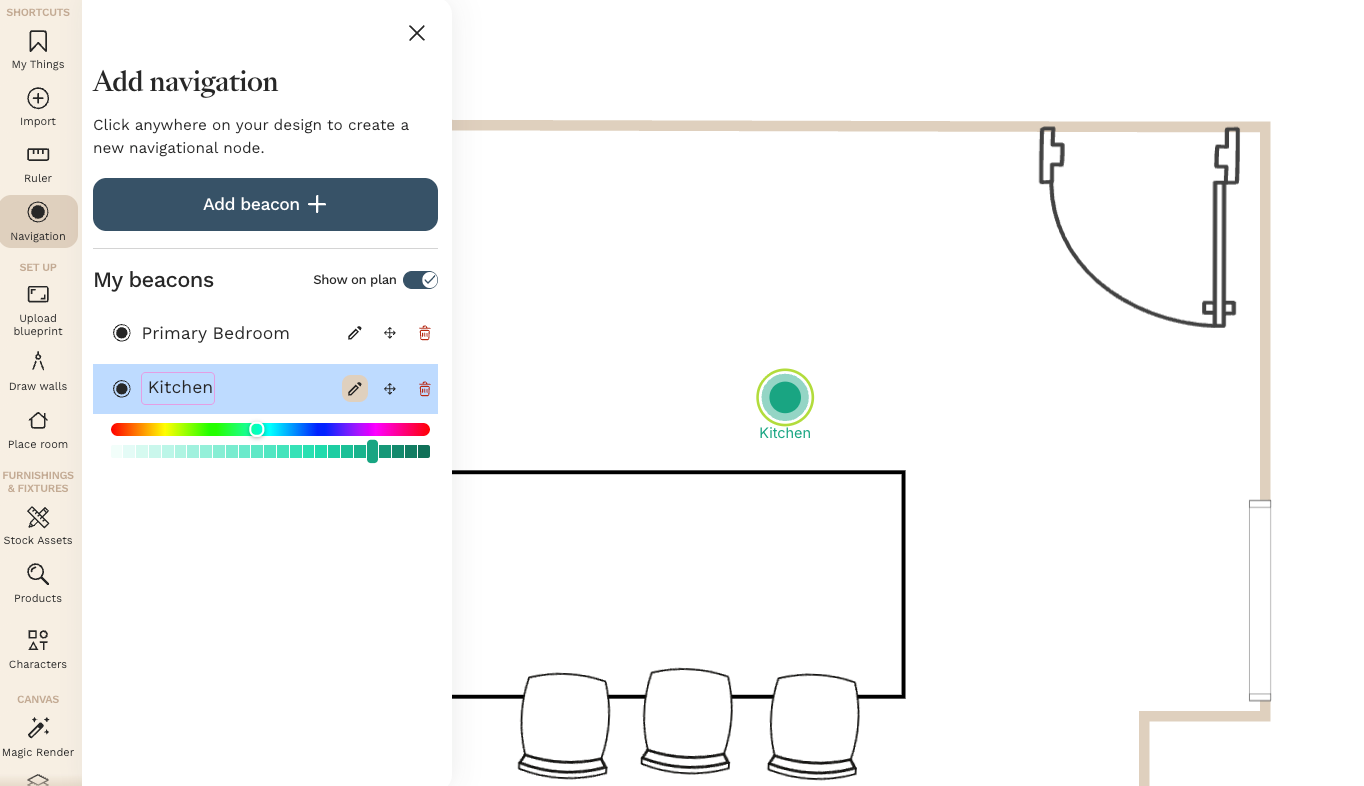

Adding a beacon

1. Click Navigation in the left sidebar.
2. Click Add beacon +.
3. Click anywhere on your canvas to place the beacon.
4. Zoom in to adjust its position, then confirm placement.

Managing beacons

From the Navigation panel you can rename the beacon, change its color, move it, or delete it.

Navigating with beacons

Click Navigation in the left sidebar to open the beacon list. Click any beacon to jump directly to that area of the plan.

Beacons also let you refine exports — you can export just the area around a specific beacon rather than the entire canvas.
